Vertical Conveyor Systems

Space-Efficient Vertical Transport with Power & Precision

Product Overview

LEADOR’s Vertical Conveyors are engineered for continuous or intermittent vertical transport in high-throughput environments. From reciprocating vertical lifts for pallet handling to continuous vertical conveyors for tote and box transport, our systems ensure seamless elevation without disrupting the flow. Integration-ready and safety-compliant, these solutions are vital for multi-level warehouses and production lines.

Whether in e-commerce fulfillment, manufacturing, or automated cold storage, vertical lifts support precise positioning, smooth transitions, and synchronized timing with upstream/downstream conveyors.

Introduction & Core Benefits

Leador Tech’s Vertical Conveyors and Lifts are specialized automated material handling solutions designed to efficiently transport items between different elevations, such as floors, mezzanines, or processing levels. Unlike traditional elevators, many of our vertical solutions are built for continuous, high-volume operation, seamlessly integrating into a conveyor line to maintain uninterrupted material flow. Our range includes various technologies, from reciprocating lifts (VRCs) for intermittent heavy loads to continuous vertical conveyors for high-throughput applications, each engineered for reliability, safety, and precise item movement across industries like e-commerce, manufacturing, logistics, and warehousing.

Vertical space is a critical asset. Our Vertical Conveyors drastically reduce the horizontal footprint required for elevation changes compared to inclined conveyors, freeing up valuable floor space for storage, picking, or processing. This makes them an ideal solution for compact facilities or maximizing existing warehouse cubic capacity.

Many of Leador Tech’s vertical solutions are designed for continuous operation, ensuring a steady and uninterrupted flow of materials between levels. This eliminates bottlenecks associated with intermittent lifting solutions, supporting high-volume operations and enabling consistent throughput for your entire system.

Safety is paramount. Our Vertical Conveyors and Lifts are engineered with multiple safety interlocks, guarding, and robust mechanisms compliant with relevant safety standards (e.g., ANSI/ASME B20.1). This not only protects personnel but also ensures reliable, consistent performance with minimal downtime and reduced risk of product damage.

Leador Tech’s vertical solutions can handle a diverse range of items, from small cartons and totes to large, heavy pallets, depending on the specific model. They are designed for seamless integration with various horizontal conveyor systems (roller, belt), sorters, and automated storage and retrieval systems (AS/RS), providing a complete material flow solution.

Our belt conveyors are highly modular, enabling a vast array of configurations including horizontal straight sections, inclines, declines, curves, and merges/diverges. This flexibility allows for seamless integration into complex layouts and makes our systems easily scalable to accommodate future growth and changing operational demands without extensive re-engineering.

Belt Conveyor Types

01. Continuous Vertical Conveyors

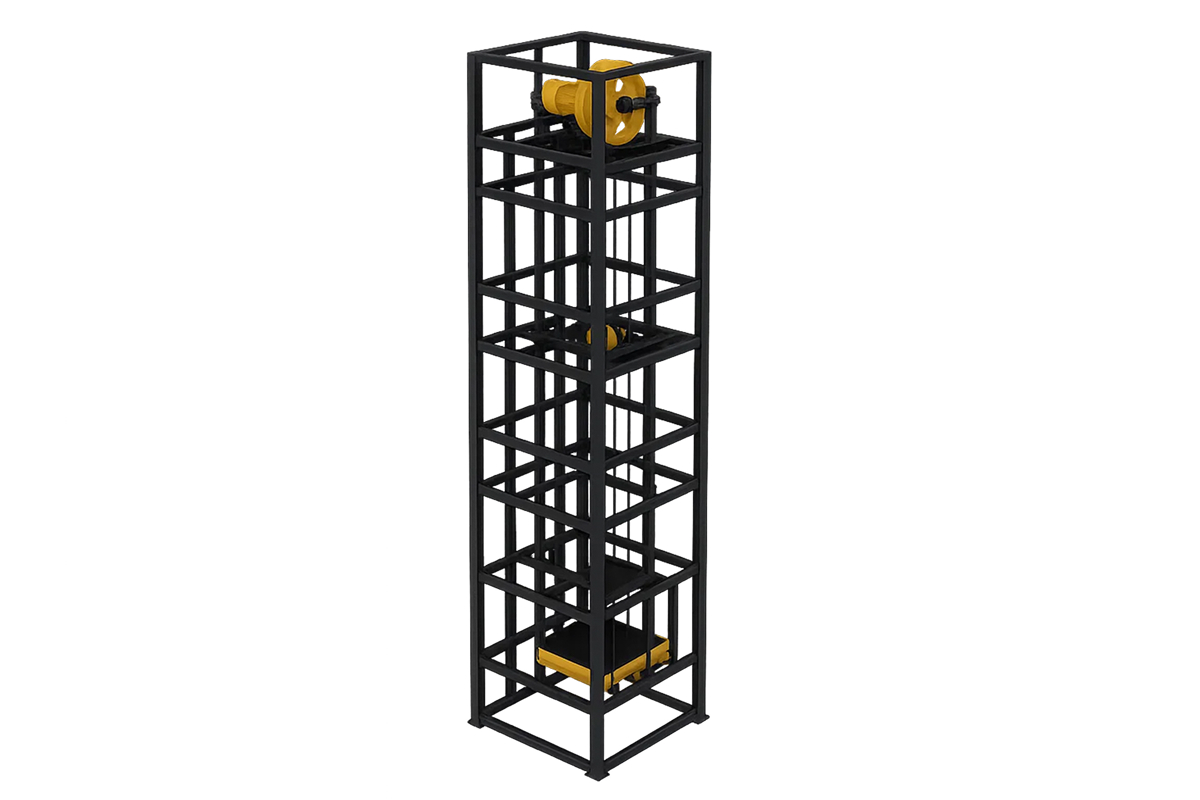

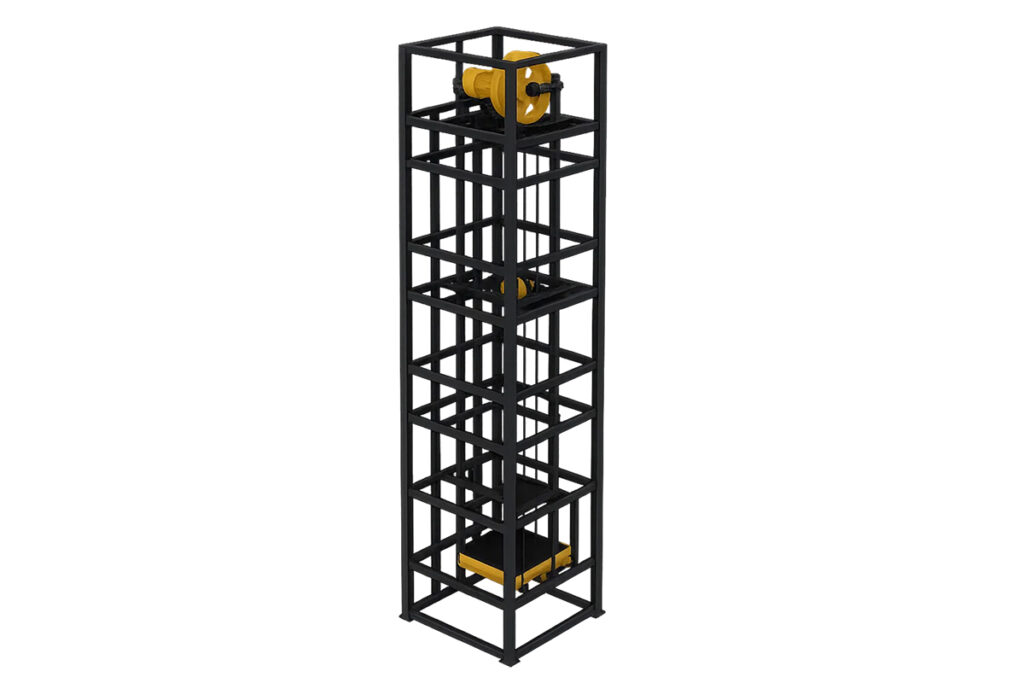

Principle: These conveyors use an articulating chain or carriage system that continuously transports items vertically in a fixed path (e.g., C-shaped, Z-shaped). Ideal for high-throughput, continuous material flow between levels. Applications: Feeding sorters, connecting multi-level picking areas, transferring items to mezzanine packing stations, automated storage systems.

Learn more

02. Reciprocating Vertical Lifts

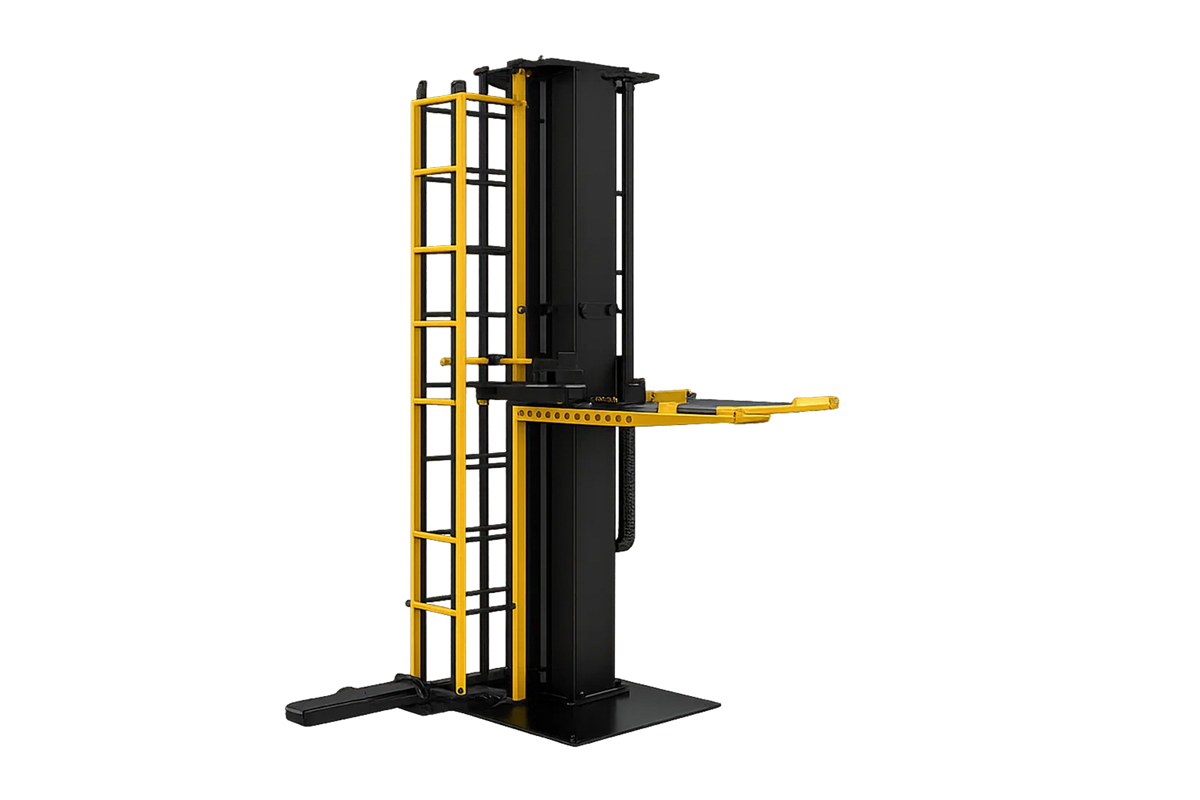

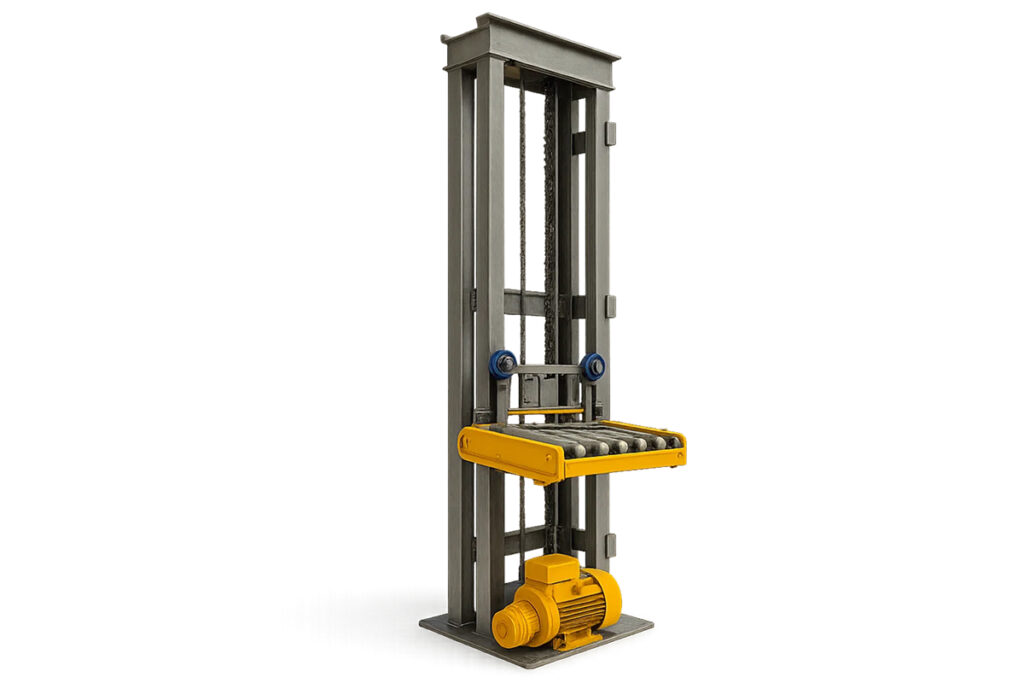

Principle: A carriage moves up and down on a mast, carrying items between two or more fixed levels. Designed for intermittent, heavy-duty lifting, often handling pallets, large totes, or specific loads. Applications: Pallet lifting, inter-floor transfers for bulk items, heavy manufacturing, mezzanines in warehouses.

Learn more

03. Accumulation Roller Conveyors

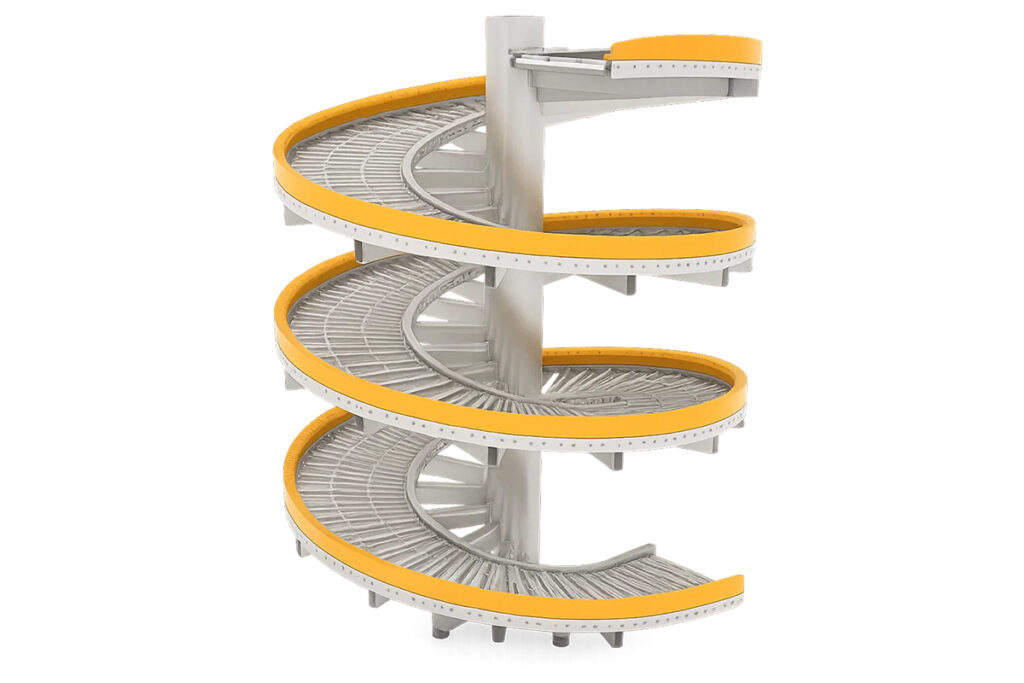

Principle: A continuous conveyor path winds helically around a central mast, providing a compact, continuous method for ascending or descending items while maintaining product orientation. Often used for cooling or accumulation as well. Applications: Connecting processing levels, in-line buffering, food and beverage industries (gentle handling), tight spaces requiring elevation change.

Learn more

Application Scenarios

E-commerce

Transport totes between pick and pack zones

Pallet Warehouses

Lift heavy loads to mezzanine storage

Manufacturing

Link production cells across vertical levels

Distribution Centers

Efficient multi-tier shelf restocking

Storage Facilities

Space-saving vertical movement

Features & Advantages
Modules & Collaboration

Key Features & Advantages Our robust lift solutions provide safe, reliable, and precise elevation changes for a wide range of items. Ideal for optimizing multi-level warehouses, production facilities, and distribution centers, our systems seamlessly integrate into your automated operations, transforming vertical space into productive capacity. Space Optimization Drastically reduce floor space requirements for vertical transport. Continuous Flow Maintain high throughput between different levels. Enhanced Safety Engineered with robust safety interlocks and features. Versatile Handling Accommodate various item sizes, shapes, and weights. Seamless Integration Connects effortlessly with horizontal conveyor systems.

Core Supporting Equipment & Modular Components:

Conveyor Interfaces: Seamless connection points (roller, belt) for infeed and outfeed at each level.
Carriage/Platform: Customizable size and load capacity based on item and application.
Drive Systems: Robust motors, gearboxes, and precision controls for smooth, reliable operation.
Safety Devices: Safety gates, light curtains, emergency stops, overload protection, mechanical interlocks.
Control Panels: Intuitive local controls and integration with master PLC systems.
PLC Control Systems: The intelligence managing sequencing, timing, and synchronization with upstream/downstream equipment.

Technical Specifications

Parameter	Value Range	Engineering Notes
Lift Speed	0.2 – 1.2 m/s	Controlled acceleration critical for stability
Load Capacity	50 – 2,000 kg	Select drive system accordingly
Max. Lifting Height	Up to 15 m	Structural anchoring required above 10 m
Platform Size	Custom (600×600 – 1400×1400)	Match to load envelope
Cycle Time	6 – 20 sec	Depends on drive type and safety checks

Applications & Case Studies

Discover how Leador has empowered businesses to achieve their logistics goals. Explore our detailed case studies showcasing real-world implementations and measurable results

Transferring goods between floors or racking levels

Learn more

Connecting picking mezzanines to packing/shipping areas

Learn more

Compatibility, Safety & Support

Leador Tech’s Vertical Conveyors and Lifts are designed for robust and precise integration into your comprehensive material handling and IT infrastructure. Our automated lift solutions seamlessly connect with your WMS (Warehouse Management Systems), WCS (Warehouse Control Systems), and PLC (Programmable Logic Controller) systems through industry-standard communication protocols (e.g., Ethernet/IP, Profinet, Modbus TCP). This ensures perfectly synchronized item transfers, real-time tracking across levels, and streamlined control for optimal operational flow and data visibility.

Safety is our absolute priority in the design and deployment of Vertical Conveyors and Lifts. Our systems are engineered and manufactured in strict compliance with rigorous international safety standards and directives (e.g., ANSI/ASME B20.1, applicable CE directives, OSHA guidelines). This includes multi-layered safety features such as enclosed guarding, emergency stop buttons, anti-fall devices, load sensing, door interlocks at each level, and integrated light curtains/safety scanners. We provide complete safety documentation and can assist with local regulatory compliance.

Leador Tech offers complete, end-to-end support for your Vertical Conveyor and Lift investment. Our services encompass initial site assessment and customized system design to professional installation, rigorous commissioning, and comprehensive operator training. Our dedicated global service network provides rapid response times for technical assistance, remote diagnostics capabilities, and efficient on-site support. We also provide tailored preventive maintenance programs and guarantee timely spare parts availability to maximize your system’s uptime and extend its operational lifespan, ensuring your vertical material flow remains consistently reliable.
