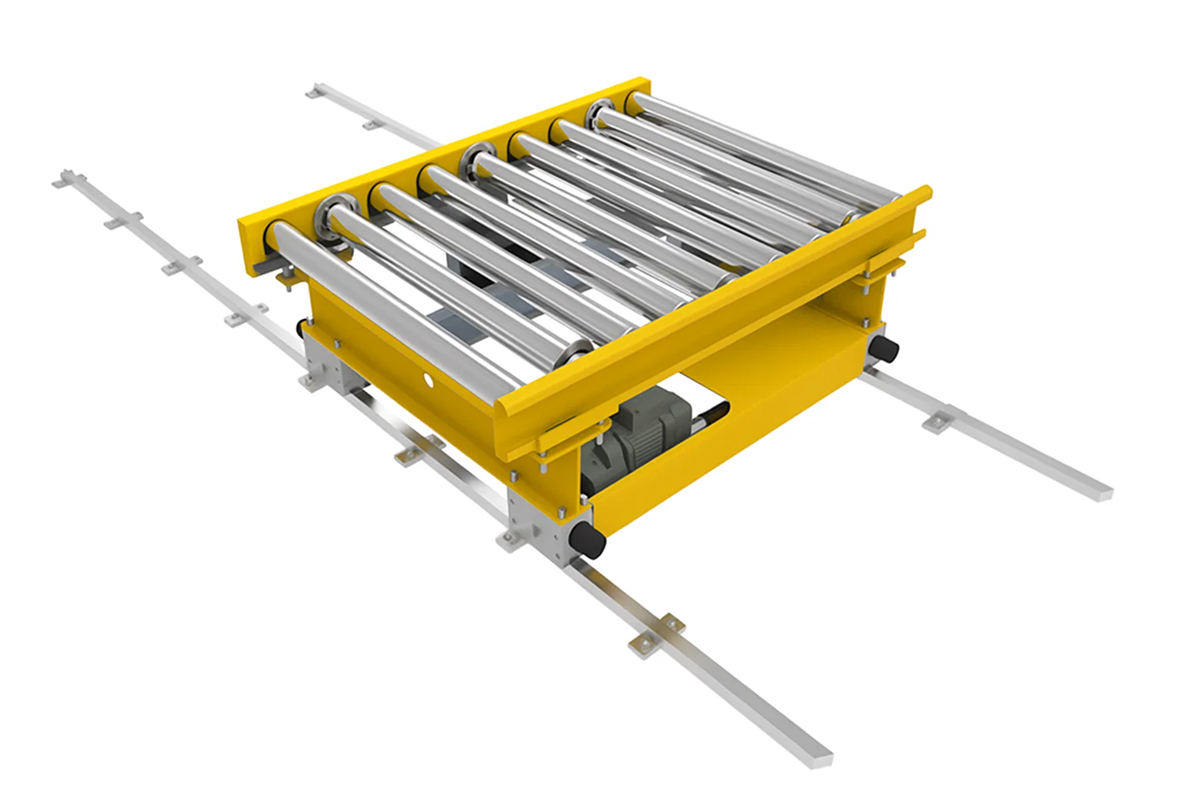

Rail-Guided Vehicle (RGV) Systems

High-Speed Pallet Transfer Solutions

Product Overview

Streamline pallet movement with precision rails. LEADOR’s Rail-Guided Vehicle (RGV) systems are engineered for high-throughput pallet handling across fixed tracks in warehouses and manufacturing facilities. Known for their speed, safety, and seamless integration with AS/RS and conveyor systems, RGVs offer a scalable, low-maintenance solution for automated internal logistics.

RGV (Rail-Guided Vehicle) systems are autonomous, motorized shuttles that travel along pre-installed rails to transfer unit loads—typically pallets—between storage zones, picking stations, or conveyor interfaces. Compared with AMRs or AGVs, RGVs deliver faster speeds, higher payload capacity, and more predictable routing, making them ideal for large-scale automation layouts.

Introduction & Core Benefits

Leador Tech’s Rail-Guided Vehicle (RGV) Systems are automated material handling solutions consisting of self-propelled vehicles that run on fixed rails, providing rapid, precise, and reliable point-to-point transport of various unit loads, such as pallets, totes, or cases. Unlike AGVs/AMRs that navigate freely, RGVs operate on a predefined, unchangeable path, making them exceptionally efficient and consistent for high-frequency, repetitive transfer tasks. They act as a critical link, seamlessly connecting receiving, storage (e.g., AS/RS), production lines, kitting areas, and shipping docks, optimizing workflow and reducing bottlenecks across a wide range of industries including manufacturing, automotive, e-commerce, and distribution

Leador Tech’s RGVs are engineered for high-speed horizontal transport, significantly accelerating the movement of materials between stations. Their fixed-path nature allows for predictable, continuous operation with minimal latency, resulting in dramatically increased throughput and reduced cycle times for critical processes. This is vital for operations requiring constant, rapid material replenishment or dispatch

Operating on precisely installed rails, our RGV systems deliver exceptional positioning accuracy at every transfer point. This inherent precision ensures flawless handoffs to and from conveyors, robotic cells, or AS/RS, virtually eliminating misalignments, product damage, and operational errors. The fixed path also guarantees highly predictable performance, simplifying scheduling and resource allocation.

Built with heavy-duty components and durable rail systems, Leador Tech’s RGVs are designed for unwavering reliability and continuous 24/7 operation in demanding industrial environments. The simplified guidance mechanism, compared to free-roaming robots, often translates to lower maintenance requirements and higher uptime, ensuring your material flow remains uninterrupted.

Our RGV systems act as versatile connectors, integrating effortlessly with diverse automation equipment, including AS/RS (Automated Storage and Retrieval Systems), various conveyor types, robotic work cells, and automated picking stations. By traversing specific lanes, they bridge distances without the need for extensive floor-mounted conveyors, effectively optimizing floor space utilization and creating clear pathways for personnel and other equipment.

Operating on dedicated rails, RGVs offer a highly controlled and safe material transport solution. They can be isolated from pedestrian traffic and equipped with advanced safety features (e.g., emergency stops, safety light curtains, speed control zones) to further enhance workplace safety, significantly reducing the risks associated with manual material handling in fixed routes.

Application Scenarios

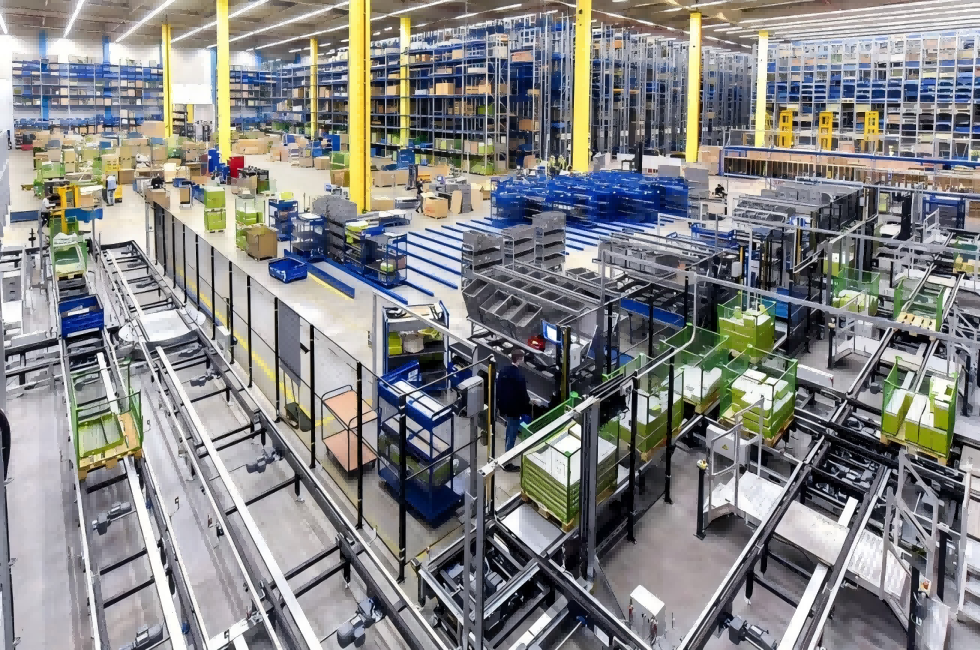

Warehousing

Enclosed AGVs for clean room material handling

E-commerce

AMRs deliver totes or bins to picking stations

Assembly Lines

AGVs move heavy parts between stations

Manufacturing

Small-load AMRs for component transfer

Food & Beverage

Cold chain-compatible AGVs with frames.

System Architecture
Features & Advantages

Working Principle & Architecture Leador Tech’s RGV systems comprise autonomous vehicles running on a network of fixed rails. Each RGV is equipped with a drive system, a load handling device, and an on-board control unit that communicates with a central control system (WCS/PLC) to execute transport tasks. Power can be supplied via conductor rails or on-board batteries.

Rail-Guided Vehicles: The self-propelled units that carry loads. Available in various configurations for different load types (pallets, totes, cases) and weights.
Rail System: Precision-engineered steel rails that guide the RGV’s movement. Can be floor-mounted or elevated depending on application needs.
Power & Communication System: Provides power to the RGVs (e.g., conductor rails, battery charging stations) and facilitates real-time data exchange between RGVs and the central control system via industrial wireless networks
Control System: The intelligent software and hardware (PLC-based) that manages RGV routing, task assignment, traffic management, and communication with higher-level WMS/ERP systems.
Transfer Stations & Interfaces: Specialized conveyor sections or lifting mechanisms at pick-up and drop-off points that ensure smooth, automated transfer of loads to and from the RGV.
Safety Devices: Comprehensive safety features including emergency stops, safety light curtains, protective barriers, and speed control zones to ensure safe operation.

Key Features & Advantages Our RGVs provide seamless, automated connectivity between critical workstations, processing areas, and storage zones. Eliminate manual intervention, ensure consistent material delivery, and significantly boost operational efficiency and safety in your manufacturing, e-commerce, or distribution facility with a solution built for consistent, high-performance flow.. High-Speed, Predictable Transport RGVs are designed for linear or loop-based layouts, capable of reaching speeds up to 2.5 m/s, significantly reducing cycle time compared to AGVs or forklifts. Fixed-rail guidance ensures absolute positioning accuracy with minimal routing logic. Heavy Load Capacity Ideal for pallet-based systems, LEADOR RGVs handle payloads of up to 1,500 kg per unit, with smooth acceleration profiles that protect fragile or unstable cargo. Smart Control & Coordination PLC-controlled logic with built-in safety hierarchy，Multi-vehicle coordination with anti-collision logic Reliable & Low-Maintenance Mechanics RGV tracks require minimal upkeep compared to omnidirectional floor-guided robots. Flexible Power & Charging Options Available in battery-powered, capacitor-powered, or continuous rail power versions.

Technical Specifications

Parameter	Value Range	Engineering Notes
Max Payload	1,000 – 1,500 kg	Palletized or containerized goods
Travel Speed	1.5 – 2.5 m/s	Depending on system layout
Navigation	Fixed rail + encoder / RFID	High precision and predictability
Positioning Accuracy	±5 mm	Suitable for integration with conveyors
Runtime per Charge	8 – 12 hours (battery models)	Continuous rail power also available
Turn Radius	Custom track design (0.5 – 2 m)	Straight, curve, or T-junctions supported
Control Interface	-10°C to +45°C	Full data and order syncing

Applications & Case Studies

Discover how Leador has empowered businesses to achieve their logistics goals. Explore our detailed case studies showcasing real-world implementations and measurable results

Automated transport of ingredients

Learn more

Connecting production cells, transporting WIP

Learn more

Compatibility, Safety & Support

Leador Tech’s RGV Systems are designed for robust and seamless integration into your existing and future automation infrastructure. Our sophisticated Warehouse Control System (WCS) and underlying PLC controls facilitate effortless communication with your WMS (Warehouse Management Systems), ERP (Enterprise Resource Planning) systems, AS/RS, conveyor lines, and robotic work cells via industry-standard protocols (e.g., OPC UA, TCP/IP, Profinet, Ethernet/IP). This ensures synchronized material flow, real-time task execution, and comprehensive data exchange for unparalleled operational visibility and control across your entire facility

Safety is a fundamental principle in the design of Leador Tech’s RGV Systems. We implement multi-layered safety features, strictly adhering to rigorous international machinery directives and safety standards (e.g., EN ISO 13849). This includes laser scanners or safety sensors for anti-collision, emergency stop buttons at transfer points, protective guarding, and intelligent speed control zones, ensuring safe interaction with personnel and other equipment. Their inherent fixed-path operation and robust construction guarantee maximum operational reliability and minimal unplanned downtime, providing a consistently smooth and safe material flow.

Leador Tech provides comprehensive, end-to-end support for your RGV System investment. Our services encompass initial throughput analysis, detailed layout design, and simulation to professional installation, rigorous commissioning, and comprehensive operator and maintenance training. Our dedicated global service network ensures rapid response times for technical assistance, remote diagnostics capabilities, and efficient on-site support. We also provide tailored preventive maintenance programs, software updates, and guarantee timely spare parts availability to maximize your system’s uptime, extend its operational lifespan, and ensure sustained peak performance for your high-speed material transfers.
